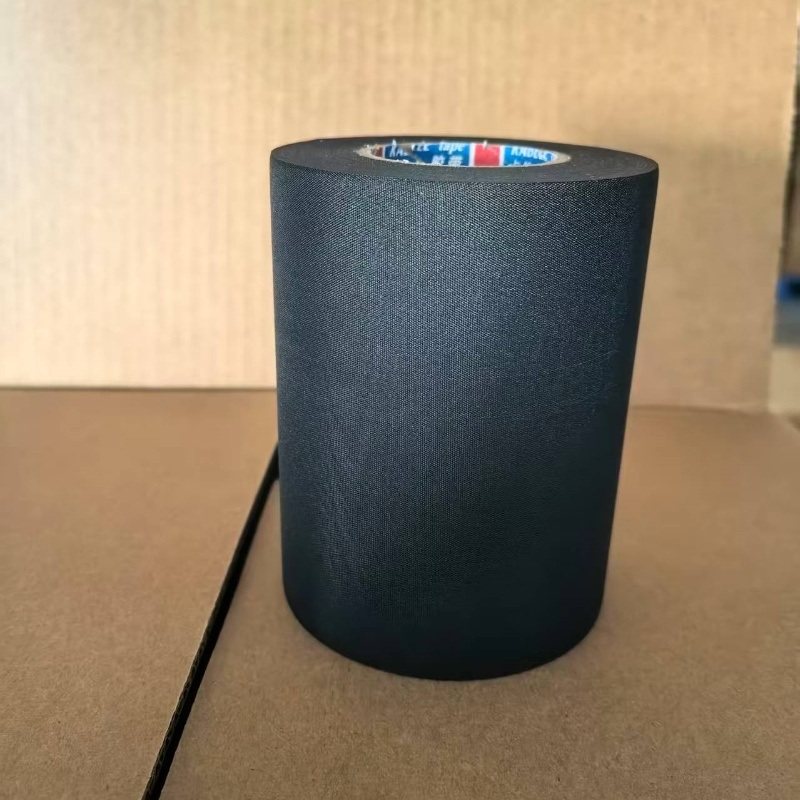

Temperature Resistant Automotive Wire Wrap Tape for Flexible Wire Protection and Management in Cars

Product Description:

Automotive cloth wire harness wrap cloth tape deliver critical performance through specialized material formulations tailored to demanding vehicle environments. Key characteristics include:

1. ‌Material Versatility‌: Common substrates include PVC for cost-effective insulation (105°C rating), PET cloth for superior abrasion/high-temperature resistance (150°C), and nonwoven fleece for noise/vibration damping12. Eco-friendly halogen-free variants are increasingly prevalent

2. ‌Environmental Durability‌: Tapes must withstand wide temperature ranges (-40°C to 150°C), particularly near engines
   . They resist moisture, UV degradation, automotive fluids (fuels, oils), and corrosive chemicals to ensure long-term integrity

3. ‌Mechanical & Electrical Performance‌: Essential properties encompass sufficient tensile strength (typically 15-30 N/10mm), elongation (150-300%), consistent adhesion (peel strength per ISO 29862), and controlled unwinding forceDielectric strength (>40 kV/mm) provides reliable electrical insulation

4. ‌Safety & Compliance‌: Flame retardancy meeting standards like UL 510 or VW60360 prevents fire propagation819. Low VOC/SVOC emissions and fogging resistance are mandated for cabin air quality. Abrasion resistance protects against wear from vibration and sharp edges

Features:

• Product Name: Automotive Wire Harness Cloth Tape
• Adhesion: 25 Oz/in
• Tensile Strength: 25 Lbs/in
• Color: Black
• Width: 9/19/25/32/38/50mm ±0.2
• Adhesive: Acrylates Copolymer
• Speciality: Engine wire harness wrap, Fabric wiring harness cloth tape

Technical Parameters:

Applications:

Kablee T04 Automotive Wire Harness Cloth Tape is the perfect solution for automotive wiring harness taping and engine wire harness wrapping requirements. This wire wrap tape is made from high quality Acrylates Copolymer which offers excellent chemical resistance and adhesion of 25 Oz/in. The cloth tape is available in black and can withstand temperatures ranging from -40°C to 125°C. This makes it suitable for automotive wiring harnesses and engine wire harnesses. The superior features and benefits of Kablee T03 Automotive Wire Wrap Tape makes it the ideal choice for auto wire harness wrap applications.

To prevent harness tape from falling off after wrapping, ensure proper application techniques and material handling based on industry standards. Here are key steps to avoid detachment: ‌

‌1. Select the Right Tape‌: Choose tape based on harness diameter, material, and environmental conditions (e.g., temperature resistance, adhesive strength). Avoid mismatched tapes that lack sufficient grip or durability
2. Prepare the Surface‌: Clean the harness surface thoroughly to remove dust, oil, or contaminants. Ensure it is dry and free from residues like talcum powder or silicone, which can weaken adhesion.
3. Apply Correct Wrapping Technique‌:
4. Start with a secure anchor point by wrapping 2-3 times at the beginning (point wrapping). ‌
Maintain consistent direction (e.g., clockwise or counter-clockwise) to prevent loosening. ‌
Overlap each wrap by at least 50% of the tape width to ensure full coverage without gaps. Avoid over-stretching the tape, which reduces adhesive effectiveness. ‌
End with a firm finish: Cut the tape close to the harness at a 45-degree angle and apply strong thumb pressure to secure it. Avoid leaving loose ends. ‌
5. Avoid Common Pitfalls‌:
Do not touch the adhesive end with fingers to prevent oil transfer. ‌
Prevent excessive winding, as it can strain the tape and cause slippage. Keep layers moderate. ‌
Store tape in a cool, dry place before use to maintain stickiness, especially in cold weather. Replace old or damaged tape promptly

Support and Services:

Automotive Cloth Wire Harness Tape technical support and services include:

• Technical and installation advice
• Online product information and documentation
• Product maintenance and repair
• Replacement parts availability
• Onsite support
• Warranty claims
